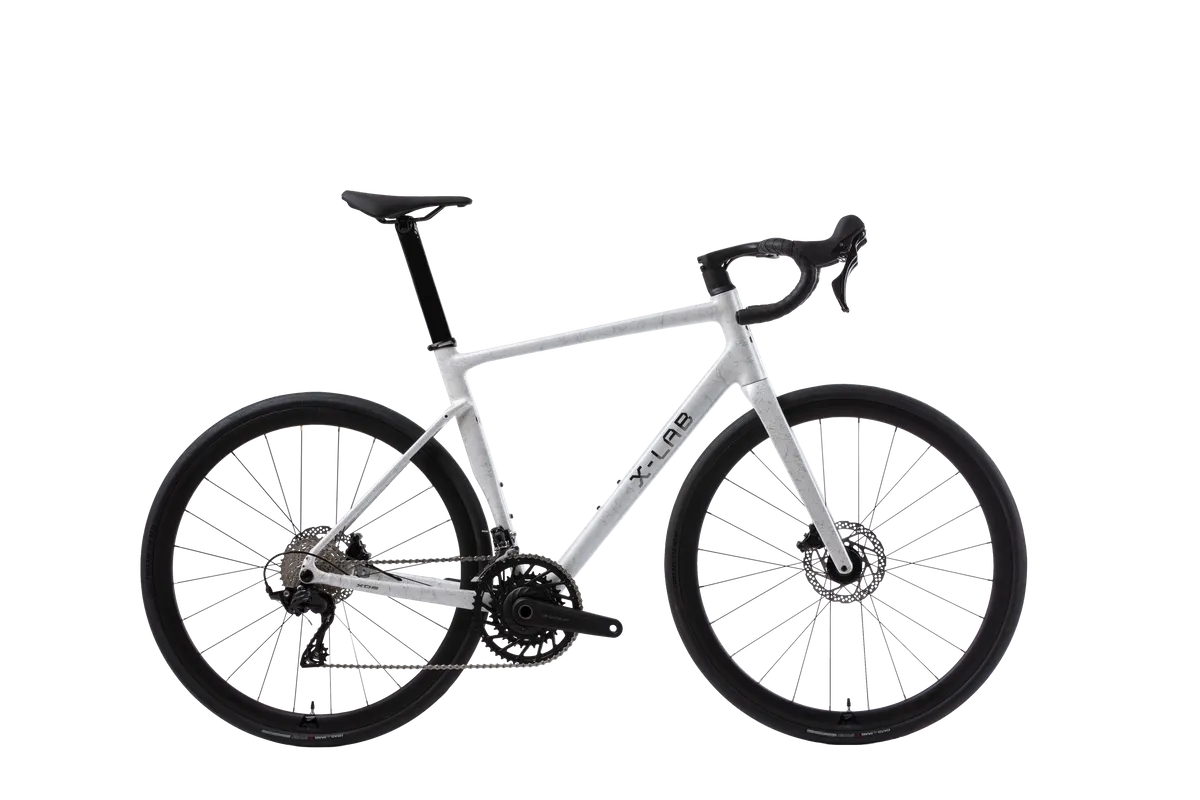

X-LAB RS5 105 12sp Wavebreaker White

$2,599.99 NZD

Sale Sold out

Shipping calculated at checkout.

Size XS Small Medium Large XL

Description

Model	RS5
Frame	XDS X6 Aluminum Frame
Fork	XDS Carbon Fork, 100x12mm Thru-axle
Stem	Branta Alloy Integrated
Handlebar
Seatpost	XDS Carbon Seatpost, Aero Shape
Rear Derailleur	Shimano 105 RD-R7100, 12-Speed
Front Derailleur	Shimano 105 FD-R7100
Shifter	Shimano 105 ST-R7120
Brakes	Shimano 105 BR-R7170
Cassette	CS-R9012, 12-Speed, 11-34T
Crankset	Branta Alloy Powermeter Crankset, 52-36T, 24mm Steel Spindle
Bottom Bracket	BSA 24mm
Rotors	Shimano SM-RT56-S, F:160 R:160mm
Chain	SUMC SX12
Wheelset	Branta A35 SL, Aluminum Rim
Tires	Branta R332, 700x32C, 60TPI
Saddle	Branta R302, Steel Rails
Weight	9.54KG (Size L)
Max. Tire Clearance	700x38mm

Frame	Size	XS	S	M	L	XL
A	Head Tube Angle (deg)	71	72	73	73	73
B	Head Tube Length (mm)	115	135	155	180	205
C	Seat Tube Angle (deg)	75	74	74	73	73
D	Seat Tube Length (mm)	440	480	510	540	560
E	Chainstay Length (mm)	420	420	420	420	420
F	BB Drop (mm)	75	75	75	75	75
G	Reach (mm)	371	375	381	387	394
H	Stack (mm)	530	553	575	599	623
I	Top Tube Length (mm)	515	530	548	568	585
J	Fork Length(mm)	386	386	386	386	386
K	Fork Rake/Offset (mm)	50	50	50	50	50
L	Trail (mm)	71	65	58	58	58
M	Wheelbase (mm)	999	1001	1004	1018	1033
N	Front Center (mm)	590	592	596	609	624
O	Stand-over Height (mm)	725	758	784	810	831

Components	Size	XS	S	M	L	XL
	Stem	80	80	100	100	100
	Handlebar	380	380	400	400	420
	Crankset	165	165	170	170	172.5
	Seat Post	300	300	300	400	400
