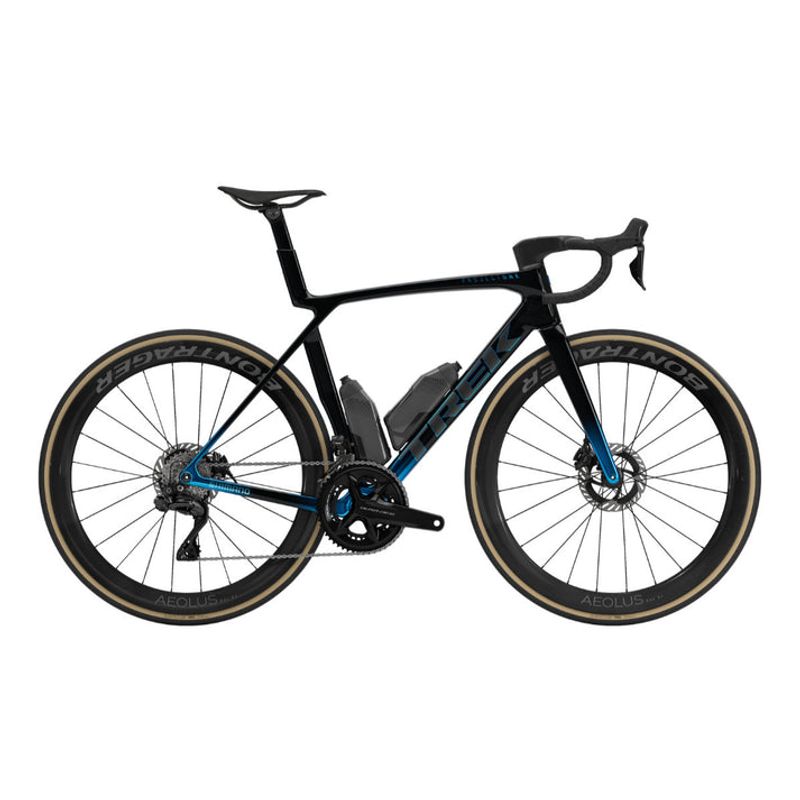

Trek Madone SLR 9 ICON Dura Ace Limited Edition

Trek Madone SLR 9 ICON Dura Ace Limited Edition

Regular price $19,999.00 NZD
Regular price $23,274.00 NZD Sale price $19,999.00 NZD
Sale Sold out
Shipping calculated at checkout.
Size
Quantity

LIMITED EDITION- STAND OUT FROM THE CROWD

Only 2 of these bad boys came to NZ and they are BOTH at GMC Cycling.

Pictures do not do this bike justice!

The Madone SLR 9 Gen 8 is built for dominating the roads with equal parts light weight and aerodynamic speed. It's crafted from our highest-level 900 Series OCLV Carbon that's not only insanely light, but delivers aerodynamic shapes for crushing descents and straightaways. Lightweight IsoFlow frame technology means that Madone doesn't sacrifice comfort for speed. This build comes ready to win with Shimano's top-of-the-line Dura-Ace Di2 drivetrain, carbon wheels, a Trek Aero RSL one-piece carbon bar/stem and RSL Aero Bottles and Cages for more drag reduction.

  • The Revolutionary Full System Foil aero tube shapes redefine what fast looks like and help optimise aerodynamics around the whole bike
  • It's crafted from our highest-level 900 Series OCLV carbon, which is mind-bogglingly light and stiff where you need the power, and compliant where you crave comfort
  • Carbon wheels keep weight down and performance up, so you can crush climbs and soar down descents
  • You get the lightning-fast shifts of Shimano's lightest drivetrain – Dura-Ace Di2
  • RSL Aero Bottles and Cages make the whole rider system faster to give you even more aerodynamic gains
  • A new Blendr system on the bar/stem makes it easy to add and remove a daytime running light




SPECIFICATIONS

Frame With Fork 900 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic-only routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle
Fork Madone Gen 8 one-piece carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100 mm chamfered thru axle
Weight ML - 7.05 kg/15.55 lb (with TLR sealant, no tubes, no bottles/cages)
Weight Limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
Battery Shimano BT-DN300
Charger Charging cable included
Shifter Shimano Dura-Ace R9270 Di2, 12 speed
Front Derailleur Shimano Dura-Ace R9250 Di2, braze-on, down swing
Rear Derailleur Shimano Dura-Ace R9250 Di2, 34T max cog
Crank Shimano Dura-Ace R9200, 52/36, 170 mm length
Bottom Bracket Praxis, T47 threaded, internal bearing
Cassette Shimano Dura-Ace R9200, 11-30, 12-speed
Chain Shimano Dura-Ace/XTR M9100, 12-speed
Max. Chainring Size 1x: 54T, 2x: 56/43
Wheel Front Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51 mm rim depth, 100x12 mm thru axle
Wheel Rear Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51 mm rim depth, Shimano 11/12 freehub, 142x12 mm thru axle
Skewer Front Bontrager Switch chamfered thru axle
Skewer Rear Bontrager Switch chamfered thru axle, removable lever
Tyre Bontrager Aeolus RSL RD, Tubeless-Ready, cotton construction, aramid bead, 170 tpi, 700x28 mm
Tyre Part Bontrager TLR sealant, 180 ml/6 oz
Max Tyre Size 32 mm (as measured, see manual for details)
Saddle Aeolus RSL, carbon rails, 145 mm width
Seatpost Madone aero carbon seat post, 0 mm offset, short length
*Handlebar/Stem (Integrated) Size: M Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 90 mm stem length Size: ML Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop,
Handlebar Tape Trek EcoTack
Brake Shimano Dura-Ace hydraulic disc, flat mount
Brake Rotor Shimano CL900, CentreLock, 160 mm
Rotor Size Max brake rotor sizes: 180 mm front, 160 mm rear
