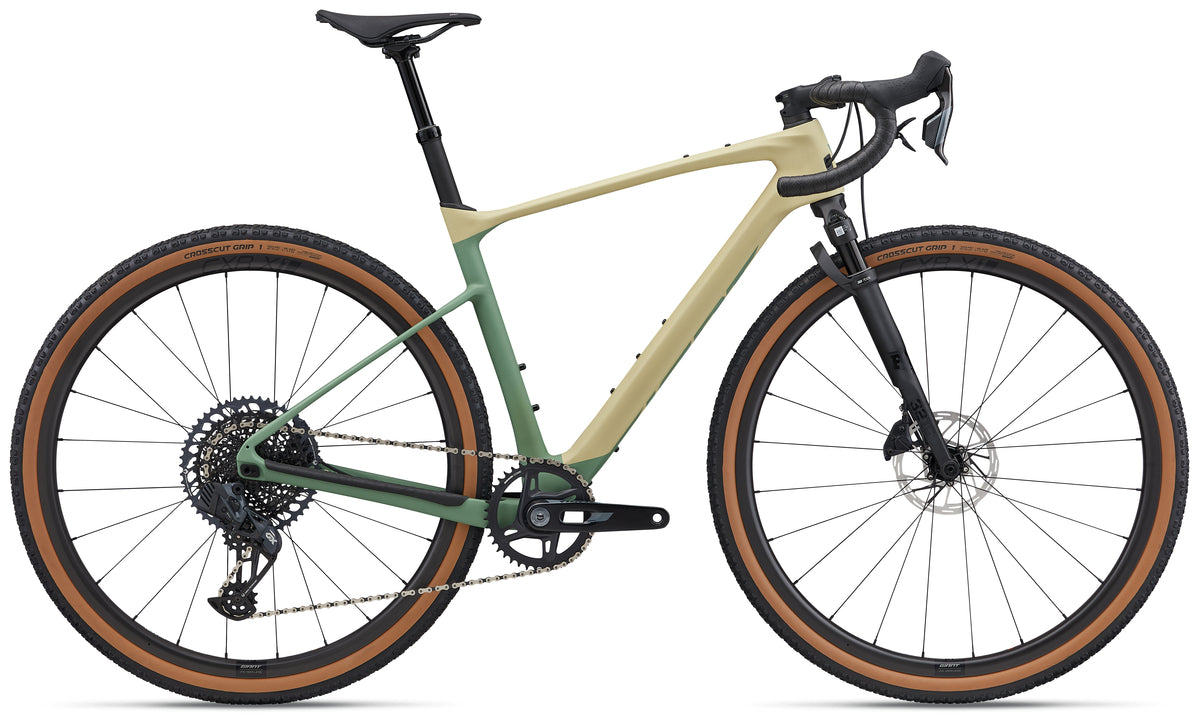

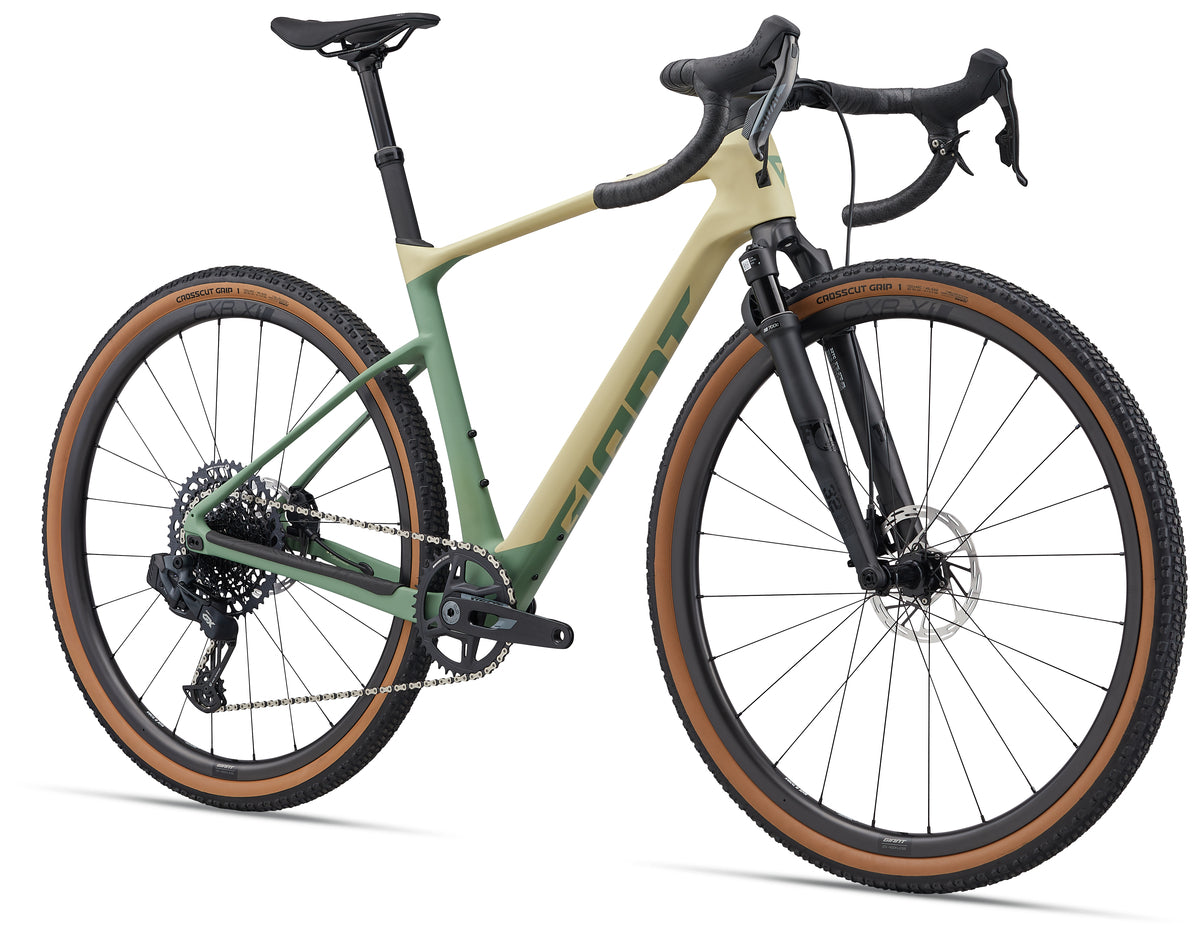

Giant Revolt X Advanced Pro 1

Washboard descents, sketchy dirt, gravel and rocks of all shapes and sizes. You never know what you’ll get on a gravel ride. This composite gravel machine has front suspension and engineered compliance to help you float through it all with speed and control.

Composite frameset is designed specifically for front suspension. With 40mm of travel, the fork absorbs impacts so you can ride smoother and faster on rugged gravel and dirt.

Lowered seatstays with smaller diameter tubes absorb road shocks and vibrations. A Contact SL XR D-Fuse handlebar adds more compliance without sacrificing the stiffness needed for cornering, sprinting or climbing.

A flip chip on the rear dropout adjusts the wheelbase short for quicker handling, or long for improved stability at speed. The long setting also allows for larger diameter tyres up to 53mm.

• Sizes
  S, M, M/L, L, XL
• Colors
  Pale Olive
• Frame
  Advanced-Grade Composite, 12x142mm thru-axle, disc, flip chip dropout
• Fork
  RockShox Rudy XPLR, 40mm, cartridge damper 12x100mm thru-axle
• Handlebar
  Giant Contact SL XR D-Fuse, 31.8mm, S:44cm, M:46cm, M/L:46cm, L:48cm, XL:48cm
• Grips
  Stratus Lite 3.0
• Stem
  Giant Contact, 8-degree S:50mm, M:60mm, M/L:70mm, L:70mm, XL:80
• Seatpost
  Post Moderne, dropper, 30.9mm with 30mm of suspension S:415mm / 100mm drop M:415mm / 100mm drop M/L: 415mm / 100mm drop
• Saddle
  Giant Grit SL
• Pedals
  N/A
• Shifters

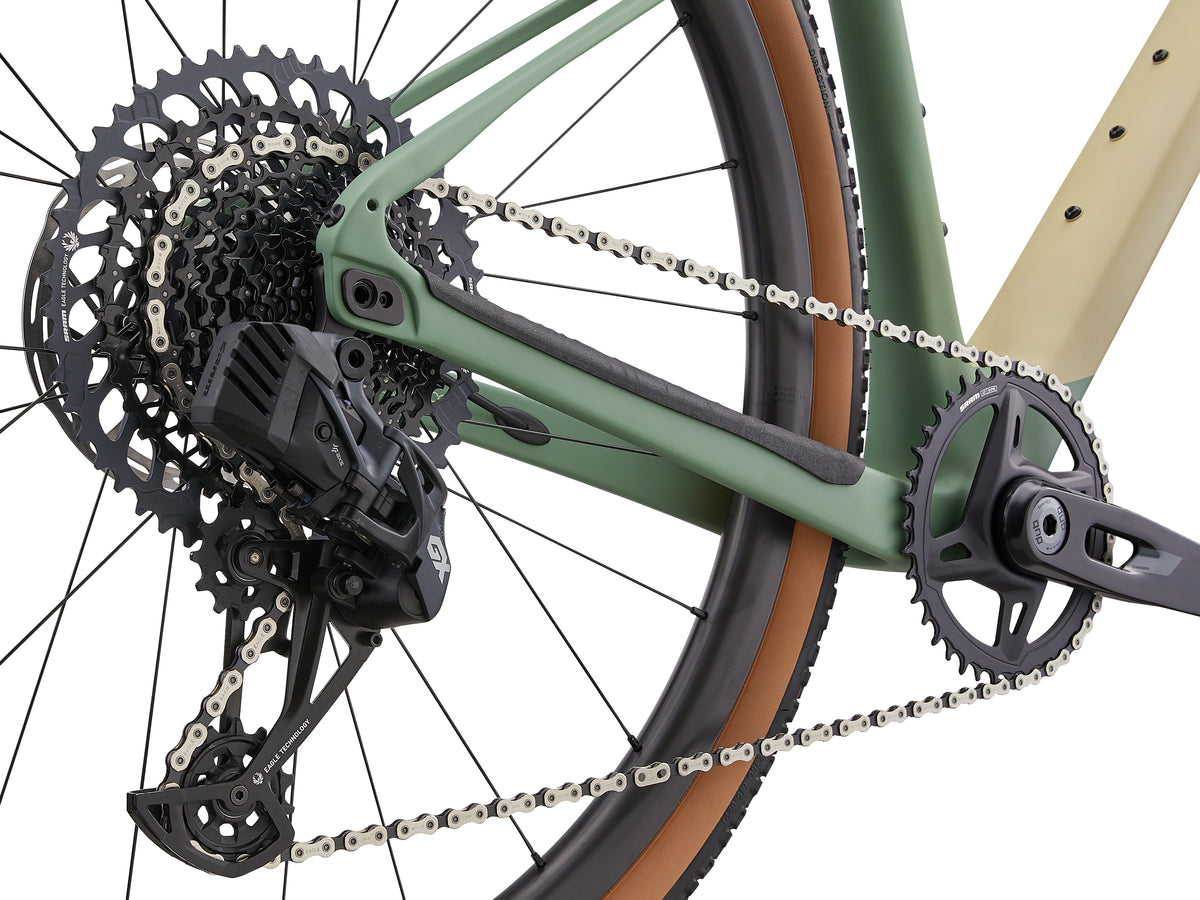

  SRAM Apex AXS, 1x12
• Front Derailleur
  N/A
• Rear Derailleur
  SRAM X1 Eagle AXS
• Brakes
  SRAM Apex AXS hydraulic, SRAM PaceLine rotors [F]160mm, [R]160mm
• Brake Levers
  SRAM Apex AXS, left lever dropper switch
• Cassette
  SRAM PG-1230, 12-speed, 11x50
• Chain
  SRAM NX Eagle
• Crankset
  SRAM Apex 1 DUB, 40t S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
• Bottom Bracket
  SRAM DUB, press fit
• Rims
  Giant CXR X1 Carbon Disc WheelSystem
• Hubs
  [F] Giant AR alloy, CenterLock, 12mm thru-axle [R] Giant AR alloy, 36t ratchet system, CenterLock, 12mm thru-axle
• Spokes
  Sapim CX-Ray
• Tires
  Giant CrossCut Grip, 700x45c, tubeless
• Extras
  Tubeless prepared, 53mm max tyre size in "long" flip chip position, 42mm max tyre size in "short" flip chip position
• Max Tire Clearance
  53mm max tyre size in "long" flip chip position
• Weight
  The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Note: All Bikes must be assembled at picked up from GMC Cycling
